AIDA SOM
Overview

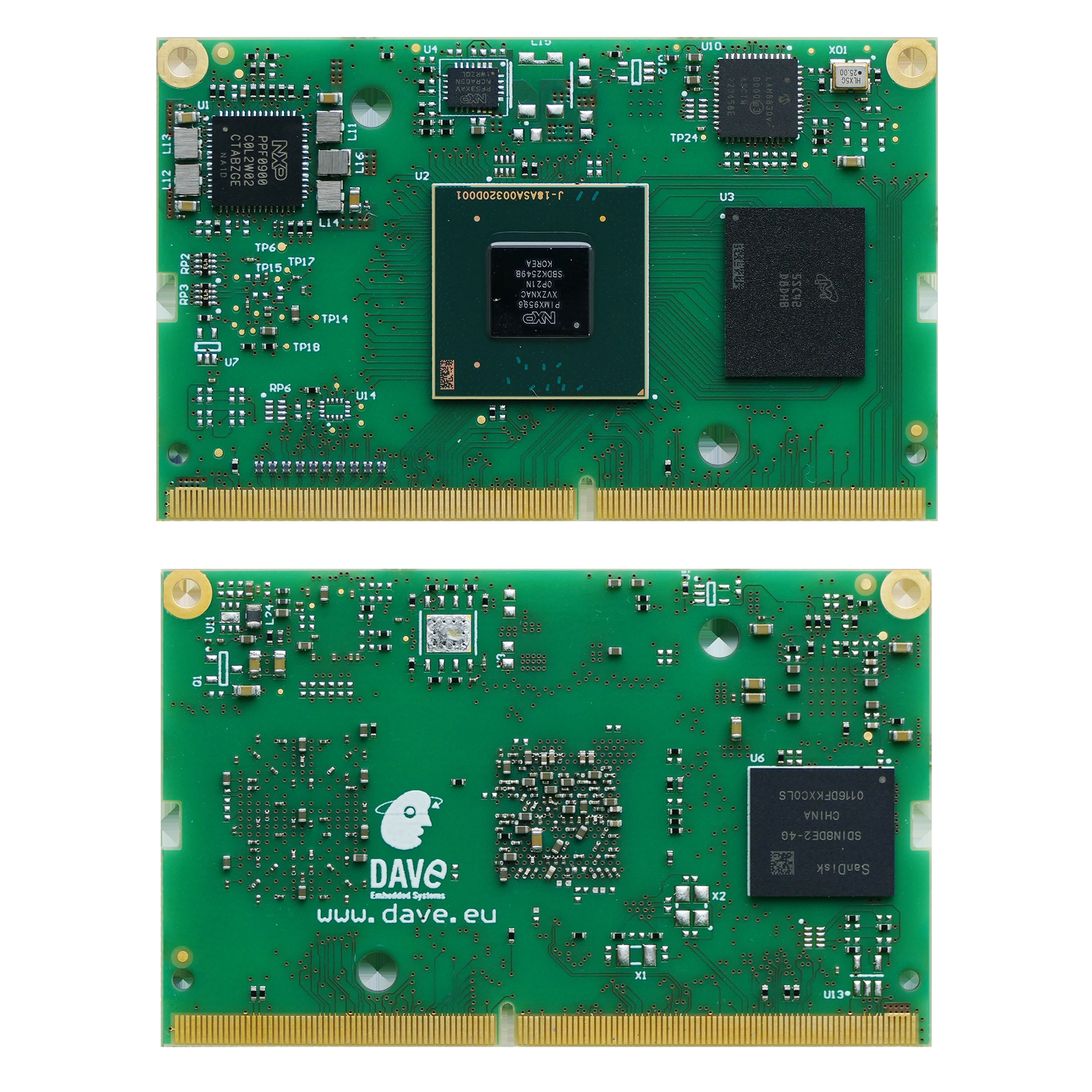

NXP i.MX95 System on Module
The NXP i.MX95 AIDA SOM is a compact System on Module engineered for next-generation edge computing, advanced vision processing, and high-performance industrial applications.
At its core is the NXP i.MX956 or 952 processor, which features a quad ARM Cortex-A55, a Cortex-M33 MCU for real-time tasks, and an integrated Neural Processing Unit (NPU) delivering 2.3 TOPS for optimised machine learning workloads.
Built for deterministic, secure operations in robotics, autonomous systems, and Smart Industry environments, the module supports extensive memory options (up to 8GB LPDDR5 with ECC) and robust hardware security, including Secure Boot and NXP’s EdgeLock enclave.
With dual Gigabit Ethernet supporting TSN and rich multimedia interfaces (including multi-camera ISPs, 3D GPU, and 1080p60 encoding/decoding), the AIDA SOM provides a scalable, secure, and easily integrated platform for demanding embedded and Edge AI designs.
Technical
Processor: NXP i.MX95 applications processor featuring heterogeneous multi-core architecture.
AI & Machine Learning: Integrated Neural Processing Unit (NPU) capable of up to 5 TOPS for efficient edge AI and vision processing.
Memory: SODIMM DDR4 RAM configuration support.Connectivity & Vision: High-bandwidth networking and vision capabilities, including TSN-ready (Time-Sensitive Networking) features.
Security & Real-Time: Secure-by-design architecture with a hardware Root of Trust alongside real-time and Linux coexistence via Asymmetric Multiprocessing (AMP).
Software Support: Comprehensive AIDA Software Linux Kit with Linux Yocto and Android distribution compatibility.
Specifications
CPU
- NXP i.MX956 / 952
- Quad ARM Cortex-A55
- MCU Cortex-M33
Video
- 3D GPU
- 1080p60 H265, H264, VP9, VP8 decoder
- 1080p60 H265, H264 encoder
Machine Learning
- Neural Processing Unit 2.3 TOPS
Supervisor
- On-board power supply supervision and power sequencer;
- Watchdog and RTC
Cache
- L1: 32Kbyte instruction, 32Kbyte data
- L2: Unified data/instruction, 512 K
Security
- Secure Boot and secure enclave
Memory
- SDRAM: Up to 8GB LPDDR5, x32 with ECC
- NOR: SPI NOR 4 - 32 MB on request
- eMMC: All sizes, on request. Not available simultaneously
Interfaces
- LAN: Ethernet 10/100/1000 Mbps (PHY on board) 1xRGMII with TSN support
- UART: up to 4x UART ports
- USB: up to 2x 3.0 OTG port (PHY on board)
- CAN: up to 2x CAN
- SDIO: up to 2x SDIO3.0 - MMC 5.1
- Audio: Up to 18 I²S / SAI and 1x SPDIF
- Video Output:
- 1x LVDS 4/8 lanes
- 1x MIPI DSI
- 1x HDMI
- Video Input: 2x MIPI CSI 4 lanes with 2xISP
- PCI express: 1x PCIe Gen 3
- Other:
- up to 6x I2C channels
- up to 3x SPI channels
- GPIOs with interrupt capabilities
Mechanical
- Connectors: SODIMM DDR4 260pins
- Size: 69.60mm x 43.00mm
- Temperature range:
- Commercial (0°C / +70°C) temperature range
- Industrial (-40°C / +85°C) temperature range
Power Supply
- Single 3.3V +/- 5%, on-board voltage regulation with power good enabling
Ordering information
Please request a quote via the orange button.
