X-ES Announces XPedite2500 XMC FPGA Module

www.xes-inc.com

Press Release

Verona, WI – April 10, 2019

X-ES Announces Rugged, Configurable XPedite2500 XMC Module with High-Density Xilinx Kintex® UltraScale™ FPGA


About X-ES
Extreme Engineering Solutions, Inc. (X-ES), a 100% U.S.A.-based company, designs and builds single board computers, I/O boards, power supplies, backplanes, chassis, and system-level solutions for embedded computing customers. X-ES offers cutting-edge performance and flexibility in design, plus an unparalleled level of customer support and service. For further information on X-ES products or services, please visit our website at www.xes-inc.com or call (608) 833-1155.

X-ES Announces Rugged, Configurable XPedite2500 XMC Module with High-Density Xilinx Kintex® UltraScale™ FPGA


Extreme Engineering Solutions (X-ES) today introduces the XPedite2500, a rugged XMC module based on the high-performance Xilinx Kintex® UltraScale™ XCKU115 FPGA. Available in conduction- and air-cooled configurations, the XPedite2500 brings formidable signal processing capabilities to the XMC form factor.

Featuring the highest density of logic elements in its family, up to 8 GB of DDR4 SDRAM in four independent channels, and numerous options for high-bandwidth I/O, this mezzanine card is a powerful, yet cost-effective, solution for a wide range of embedded applications.

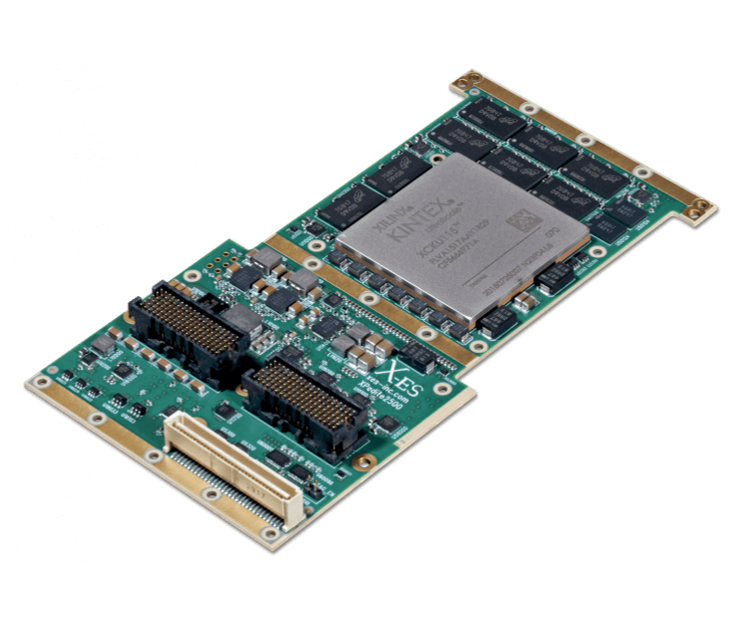

XPedite2500 Image

Cost-Effective Performance


XPedite2500 is the first mezzanine card from X ES to feature the Xilinx Kintex® UltraScale family of FPGAs.

These devices provide an ideal blend of performance and cost-effectiveness for the next generation of embedded applications, delivering the best price/performance/watt at 20 nm and the highest signal processing bandwidth in a mid-range device.

High-Density Logic Maximizes Processing Capabilities


XPedite2500 is based on the Kintex® UltraScale XCKU115, which has the highest density of logic elements in the Kintex® UltraScale family. This user-programmable device boasts ample resources for high-end logic and signal processing.
1.4M
System Logic Cells

Expansive amount of configurable logic cells to support large user functions
5520
DSP Slices


DSP Slices Efficiently supports complex math function and signal processing applications
75.9Mb
System Block RAM


Rapidly process data in parallel with minimal power and resource consumption

Flexible Design Accommodates Many Applications


System integration possibilities abound with the XPedite2500, which offers a versatile XMC processing solution that can be installed in both VPX and VME systems. Featuring up to 8 GB of DDR4 SDRAM in four independent channels and numerous options for high-bandwidth I/O, this card is equipped to process streaming data from a wide array of inputs.

In addition to a x8 PCI Express Gen3 interface on the P15 connector, it has up to eight High-Speed Serial ports on the P16 connector, which can optionally be configured as a second x8 PCI Express interface. Nineteen LVDS pairs are available on P16, while an optional P14 connector adds 26 more LVDS pairs and 12 LVCMOS for user I/O.

Whatever the application, getting started on development is easy with the X-ES FPGA Development Kit (FDK) for Xilinx Vivado. The X-ES FDK includes IP blocks, HDL, test benches, Linux drivers, and complete example designs for the XPedite2500.
