Technical

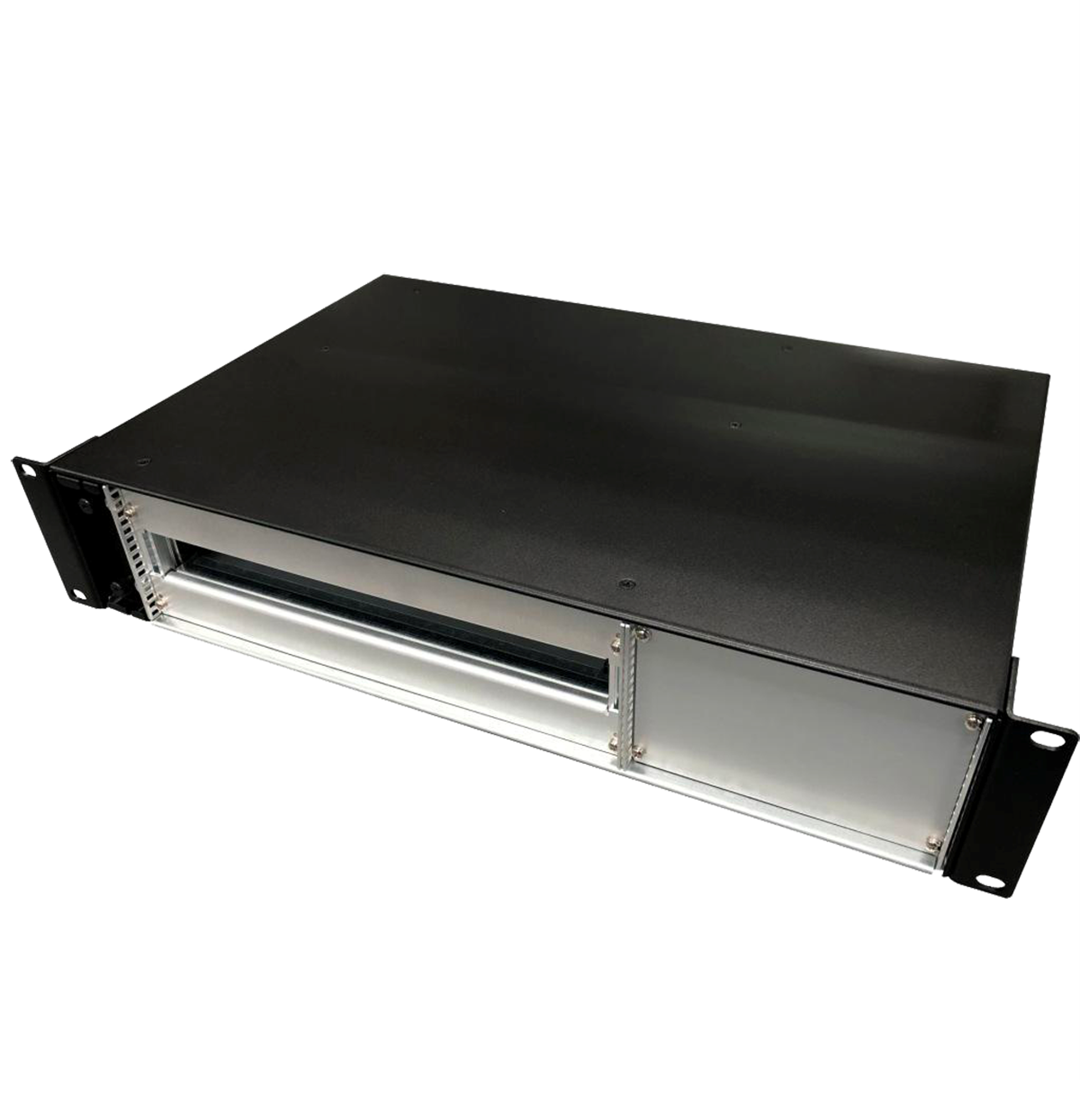

This 2U high single-slot 6U Chassis is a rugged OpenVPX-compatible Chassis and high-speed Backplane.The Chassis and Backplane thrive in operating temperatures up to 50°C, and in challenging humidity, vibration, and shock environments.
Specifications
General Features
- 19” Rackmount/Desktop fully compliant to IEEE standards
- 2U x 84HP x 290mm (H x W x D)
- 6U horizontal card mounting
- 1 slot OpenVPX
- Cooling side to side
- PSU Input: 90-230 VAC
- System monitoring for fan fail
Mechanical and Environmental
- High Performance Air Cooling with Cleanable Fans and Filters
- Electromagnetic Shielding
- Temperature
Operating: 0 to +50˚C
Storage: -20 to +70˚C
- Humidity: Operating and Storage: 5 to 95% Noncondensing
- Vibration Sine:
Operating: 1.0gs @ 10 to 330Hz
Storage: 1.2gs @ 5 to 330Hz
Operating: 10 Gs @ 11ms
Storage: 15 Gs @ 11ms (per ASTM 0775)
Operating: 6,000 ft.
Storage: 50,000 ft.
- Weight: Approximately 15 lb.
- VITA 46.11-Compliant Chassis Management: Voltage, Temperature and Fan Monitoring and Control
- LED Status Indicators
- Allows for boards to be Hot Swappable
Accessories
- Modular and reconfigurable front and rear Patch Panels
- VITA 66.5/67.3 capable in P3 and P6
- Custom cabling available
Ordering information
There are a range of options available. Please contact Sarsen to discuss your project requirements.
