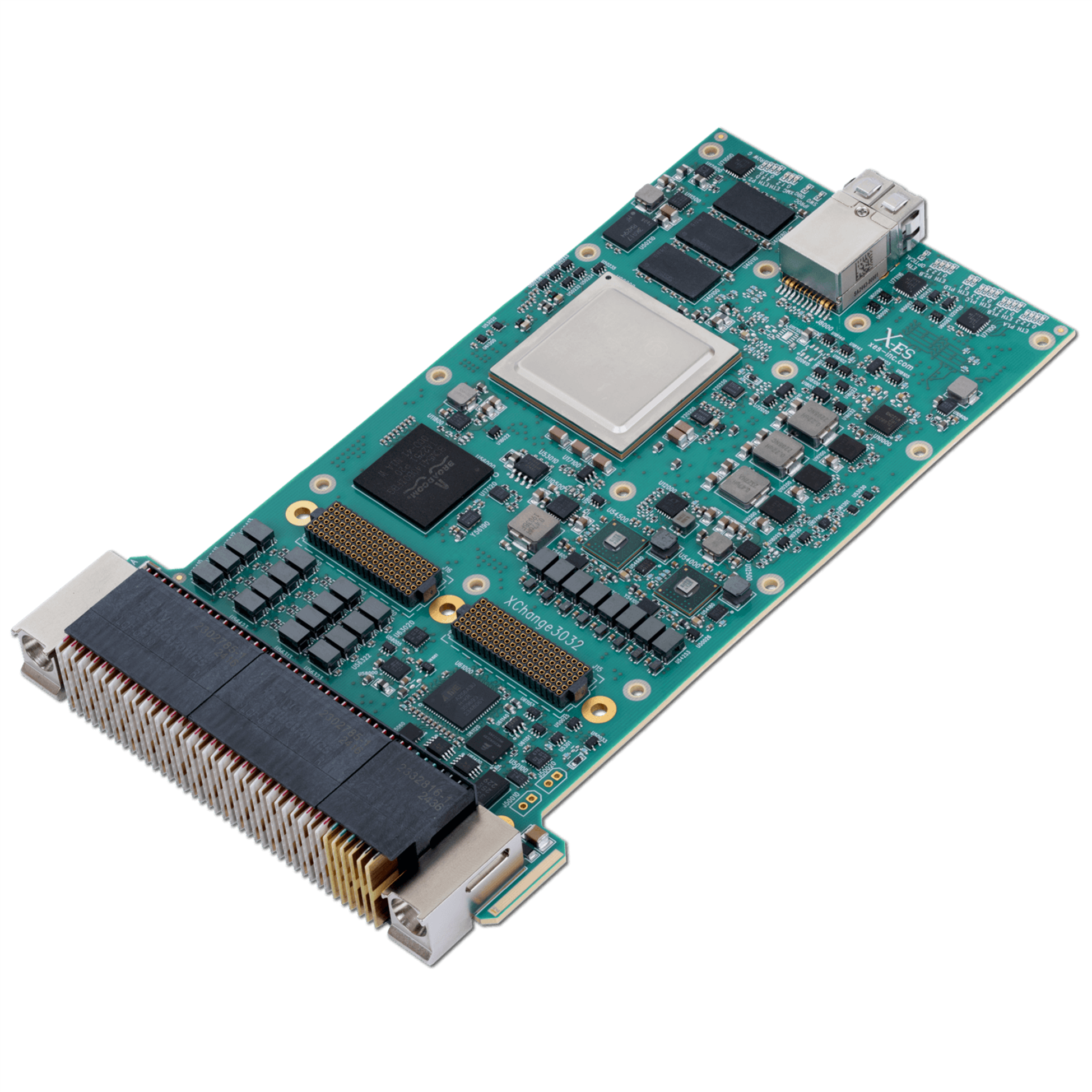

3U VPX 40 Gigabit Ethernet Switch with Layer 2 Switching and Optional Layer 3 Routing
The
XChange3032 is a conduction-cooled 3U VPX Ethernet switch module offering extensive connectivity, providing three backplane 40GBASE-KR4 Ethernet ports, 10 backplane 10GBASE-KR Ethernet ports, two backplane 10GBASE-T Ethernet ports, four backplane 1000BASE-T Ethernet ports, and one optional front panel optical Ethernet port.
The board is
SOSA-aligned to AMPS profile MODA3-16.4.16-1-F2C-(3E8,2E6,2E3,4E7)-(6E7,1E7-1E3) and compatible with SOSA payload profile ANSI/VITA 65.0 switch slot profile SLT3-SWH-6F8U-14.4.15.
The XChange3032 delivers full wire-speed across all of its ports and supports jumbo frames up to 10 kB. It also supports IPv6 and a comprehensive set of IETF RFCs and IEEE protocols. As a fully managed Layer 2 switch, the XChange3032 supports features such as VLANs (IEEE 802.1Q), LACP, STP, RSTP, PVRST, MSTP, SNMP, flow control, port mirroring, port authentication (IEEE 802.1x), Quality of Service (QoS), ACL, IGMP, and LLDP.
The XChange3032 can also optionally host an
XChange6300 Cisco IOS-XE® Gigabit Ethernet Embedded Services Router.
