DM-125-3U

Overview

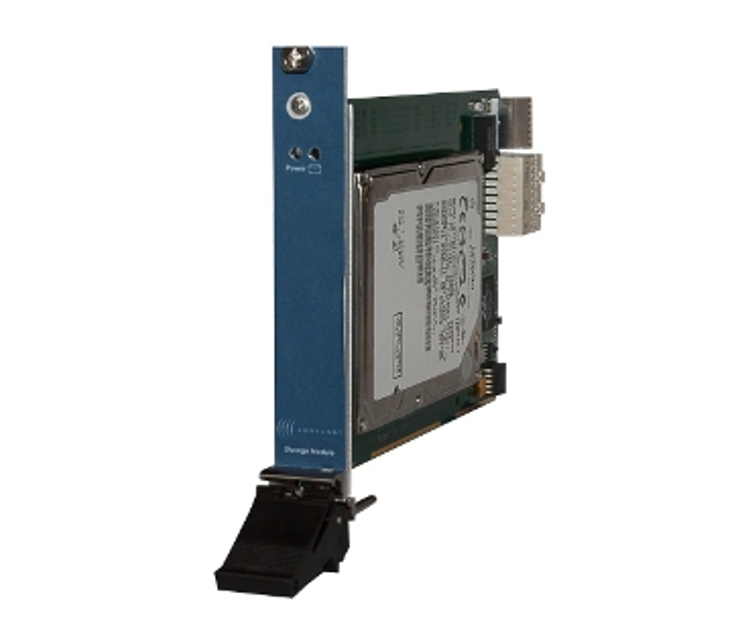

Big River™ DM-125-3U PXIe Storage Unit

The Big River™ DM-125-3U storage unit from Conduant provides disk storage resources to PXI Express based systems. The DM-125-3U allows high speed storage applications to be designed around a standard PXIe chassis by providing an internal enclosure for disk storage. Offering capacities of up to 2 TB in a single unit the DM-125-3U can provide significant storage capacity in a very small enclosure.

Available with both HDD options and SSDs.

Technical

Capacity up to 2 TB
PXI Express form factor
Onboard PCI Express SATA controller
Compatible with major operating systems
Requires only 1 open slot (4HP)
Software RAID capable
Combine multiple units for additional storage capacity

Specifications

Maximum Capacity	2TB Single Drive
Internal Drive Interfaces	1SATA
Drive Type	2.5” Notebook or Solid State Drives
Dimensions	6.1875” (D) x .787” (W) x 5” (H)
Weight (with drives)	1 lbs
SATA Controller	Marvell
Power	5W
Chassis slots	PXIe1 slot required (4HP)

Technical documents

Conduant DM-125-3U Datasheet

Ordering information

The DM-125-3U can be equipped with HHD or SSD options with several capacity choices. Please contact Sarsen Technology to discuss your requirements.
