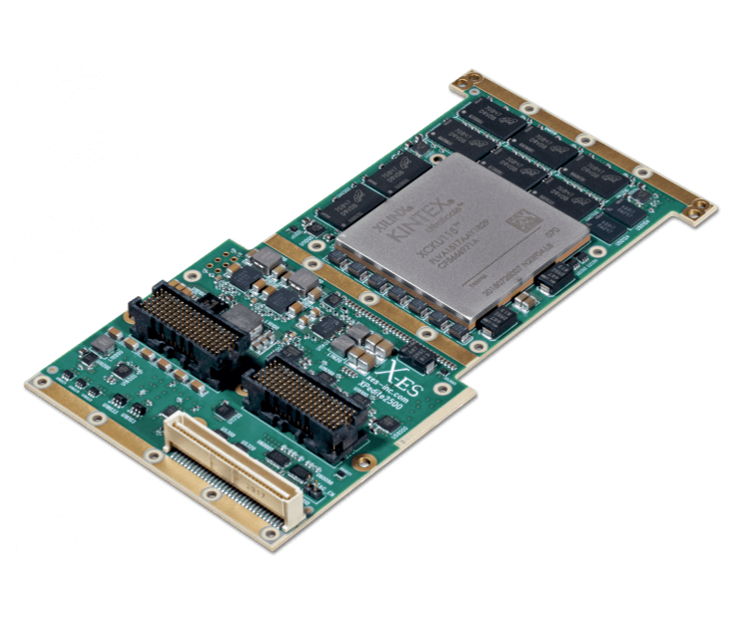

• Xilinx Kintex® UltraScale™ FPGA XCKU115
• Conduction- or air-cooled XMC module
• Up to 8 GB of DDR4-2400 SDRAM in four 32-bit channels
• x8 PCI Express Gen3 interface to P15
• x8 PCI Express Gen3 interface or up to eight High-Speed Serial (HSS) ports to P16
• 19 LVDS to P16
• 26 LVDS to P14 (optional)
• 12 LVCMOS (1.8 V) to P14 (optional)
• Dual-QSPI FPGA configuration flash
• FPGA Development Kit (FDK)
• Linux drivers

FPGA

• Xilinx Kintex® UltraScale™ for high-performance logic and DSP applications
• Standard FPGA is Xilinx Kintex® Ultrascale™ XCKU115
• Support for commercial and industrial temperature, as well as -1, -2, -3 speed grades

Memory

• Up to 8 GB of DDR4-2400 SDRAM in four 32-bit channels
• Dual-QSPI FPGA configuration flash

XMC Site

• x8 PCI Express Gen3 interface

P14 User I/O (Optional)

• 26 LVDS user I/O to FPGA
• 12 LVCMOS (1.8 V) user I/O to FPGA

P15 I/O

• x8 PCI Express Gen3 interface compliant with VITA 42.3

P16 I/O

• x8 PCI Express Gen3 interface compliant with VITA 42.3 or up to eight High-Speed Serial (HSS) ports
• 19 LVDS user I/O to FPGA

Development Support

• X-ES FPGA Development Kit (FDK)
• Linux drivers

Physical Characteristics

• Conduction- or air-cooled XMC form factor
• Dimensions: 149 mm x 74 mm

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 3, 5
• Conformal coating available as an ordering option

Power Requirements

• Power will vary based on configuration and usage. Please consult factory.
