A perfectly designed system is usually more than the sum of it’s parts, but the elements that make up the system infrastructure are key to creating an integrated and agile architecture that can grow and adapt with your requirements.
Chassis, backplanes, switches, storage – it’s all part of a complex ecosystem of products and choosing the right ones for your application can be a real challenge. When it comes to storage there are myriad options to choose from, but some of the latest technology releases in this area include SOSA/VPX FPGA embedded storage boards, which are scalable and rugged, with a connector rated for 10,000 mating cycles.
The

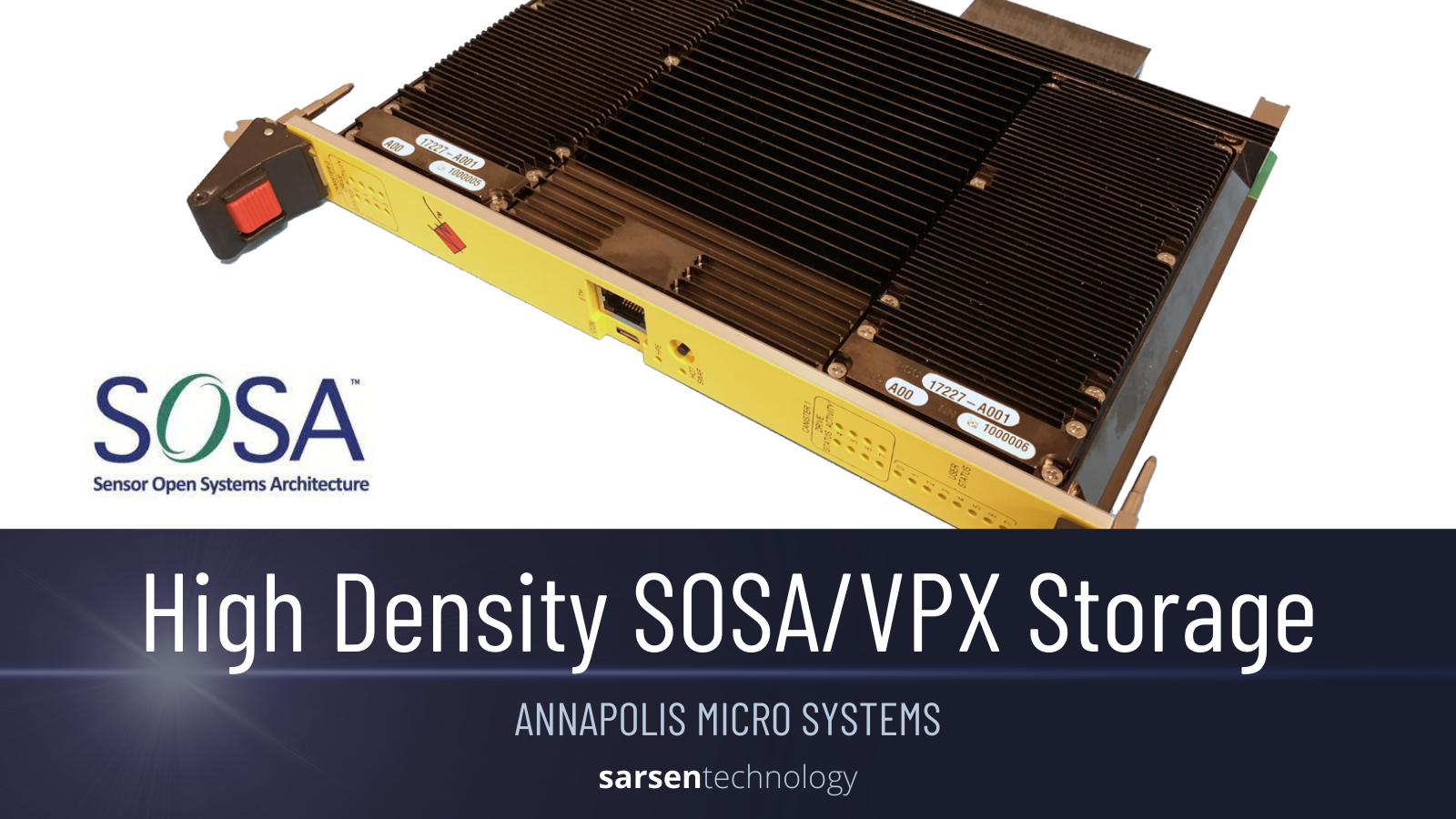

6SN0 from Annapolis Micro Systems really fills a gap in the market for 100GbE capable, FPGA-based SOSA aligned modules.
These embedded VPX storage modules feature the Xilinx Zynq UltraScale+ MPSoC, which allows for standalone operation, and for several interfaces that can operate simultaneously. Options include PCI Express, Aurora, 40/100 Gigabit Ethernet, and user-defined protocols.
Available in both 6U and 3U, these 6U OpenVPX Storage boards currently feature up to 32 TB of capacity in a single 1” slot, and up to 10 GB/sec read/write bandwidth. Gen2 boards are 100Gb Ethernet capable. This exceptional bandwidth comes from 25-gigabit-per-second FPGA transceivers and high-density MULTIGIG RT3 backplane interconnects, which deliver 100 gigabits per fat pipe.
The 6SN0 is part of Annapolis’ growing
WILD100 EcoSystem™, a well-established family of rugged high-performance 100Gb VPX COTS boards and systems. It offers extensive memory, storage, and I/O bandwidth, and can handle high-bandwidth and high-density data recording in harsh environments for applications including SIGINT, ELINT, EW, or other high-bandwidth storage applications. The rugged design is available in industrial temperature grades, with air, conduction, air-flow-through, or liquid cooling. The boards are hot swappable and backplane connectors are rated for 10,000 insertion cycles.
Let us know your requirements for SOSA and VPX systems, thanks to the incredible EcoSystem from Annapolis we might just be able to nudge your design into the ‘practically perfect’ bracket…
