NLINE-EMA4
Overview

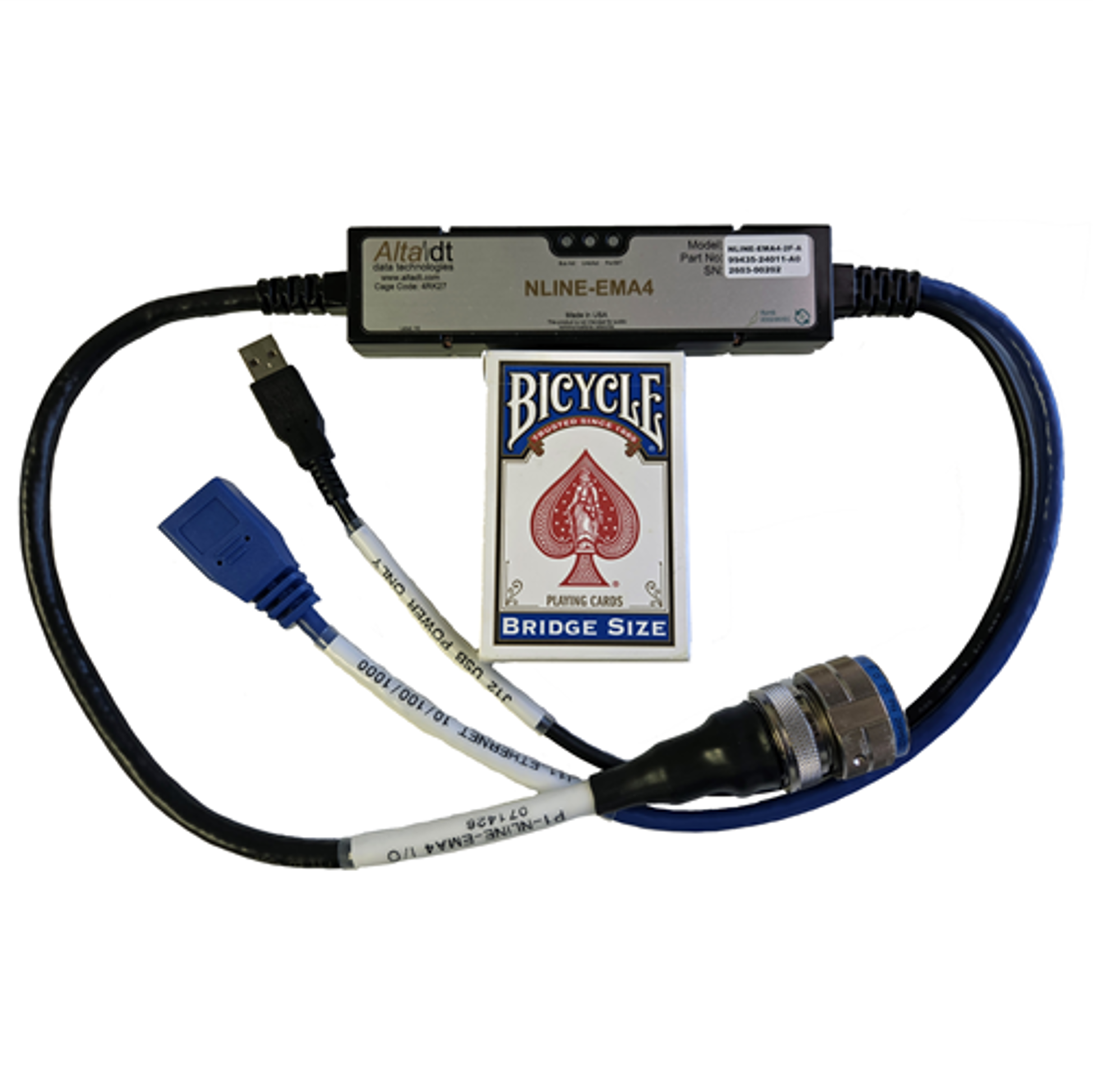

1553/ARINC Real-Time Ethernet Converter (Rugged, Cable In-Line Package)
The NLINE-EMA4 is an industry-first, rugged, in-line real-time Ethernet converter designed for multi-protocol MIL-STD-1553 and ARINC networks.
By embedding the full capabilities of Alta’s ENET-MA4 bridge directly into an over-molded cable assembly, this zero-footprint device eliminates the need for internal computer card slots or external appliance boxes, resulting in critical space savings and unmatched deployment flexibility. The converter delivers secure, real-time UDP connectivity to a system LAN, providing real-time Ethernet conversion for one or two dual-redundant 1553 networks and up to four ARINC-429 channels (with 717 selectable options).
Unlike traditional processor-based Ethernet converters that rely on vulnerable IP stacks, the NLINE-EMA4 employs a hardware-centric FPGA thin server, achieving ultra-low latency packet turnaround times under 20 microseconds and removing vulnerabilities to viruses and hacking.
It features an auto-boot sequence, an Automatic Data Bridge Mode that transmits time-stamped UDP packets without host programming, and built-in Signal Capture capabilities for remote bus signal troubleshooting.
Supported by the robust AltaAPI Software Development Kit for seamless application portability, the NLINE-EMA4 passes rigorous environmental testing including MIL-STD-810G shock and vibration, MIL-STD-461F EMC, and altitude and water-immersion requirements, making it ideal for field platforms, flightline testing, and mission-critical embedded systems.
Technical
- 1-2 Full Featured, Dual Redundant 1553 Channels & 4x Shared ARINC RX/TX Channels and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels)
- Auto-Bridge 1553/ARINC BM/RX Messages to UDP Ethernet without Programming
- 6 RX Avionics Discretes for General Use or 1760 RT Addressing. IRIG RX. Ext Clock and Trigger
- MIL-810G Shock/Vibe/Temp, 810-512.6 Water Immersion, and MIL-461F EMC Test Reports (for Sister Product: NLINE-E1553)
- 5-32 VDC, 500-1700 mAmp 5V typical. 7W max with 2 channels 100% TX. Conditioned Power Required.
- Commercial or Ext Temp (-40 to +85C) Parts Available
Specifications
- 1-2 Full Featured, Dual Redundant 1553 Channels & 4x Shared ARINC RX/TX Channels and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels)
- Auto-Bridge 1553/ARINC BM/RX Messages to UDP Ethernet without Programming
- 6 RX Avionics Discretes for General Use or 1760 RT Addressing. IRIG RX. Ext Clock and Trigger
- MIL-810G Shock/Vibe/Temp, 810-512.6 Water Immersion, and MIL-461F EMC Test Reports (for Sister Product: NLINE-E1553)
- 5-32 VDC, 500-1700 mAmp 5V typical. 7W max with 2 channels 100% TX. Conditioned Power Required.
- Commercial or Ext Temp (-40 to +85C) Parts Available
- 38999 Amphenol D38999/26WD35PN Male to 1553/ARINC/AUX; USB Type A Power Only, Over-molded RJ45 Ethernet
- Signal Capture for Cable/Security Testing on First Channel 1553 and First 2x ARINC Channels
- Optional Standard Cable Assemblies: 38999 to 1553 Jack Connectors and DB26 for ARINC/AUX Signals
- SAE AS4111 5.2 RT Validation Tested - Report Available
- Dual (BC/BM or mRT/BM) and Full (BC, mRT and BM) Function Models Available
- Same AltaAPI SDK Development - Standard Socket Interface for Maximum Portability to Almost Any OS
Ordering information
Multi Protocol Models
NLINE-EMA4-1D4 One Channel of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels of ARINC-429 and 2 Rx/2
Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels).
NLINE-EMA4-2D4 Two Channels of Dual Redundant MIL-STD-1553 with Dual Function (BC/Mon or mRT/Mon) Capability and 4 Shared Tx/Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels).
NLINE-EMA4-1F4 One Channel of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels).
NLINE-EMA4-2F4 Two Channels of Dual Redundant MIL-STD-1553 with Full Function (BC/mRT and Mon) Capability and 4 Shared Tx/Rx Channels of ARINC-429 and 2 Rx/2 Tx ARINC-717 Selectable Channels (Each 717 Rx/Tx Replaces Two 429 Channels).
Options:
Example NLINE-MA4-2F4-ADEIN
-A AltaView SW Enabled
-D Direct Coupling (Price Per Channel)
-E Extended Temp (-40 to +85 Indust Components)
-I Tx Inhibit (BM Function Only)
-N NVRAM Write Disabled
***Optional Cable Option
NLCAB-EMA4-P1-01/02-AUX01
