XPedite7872

Overview

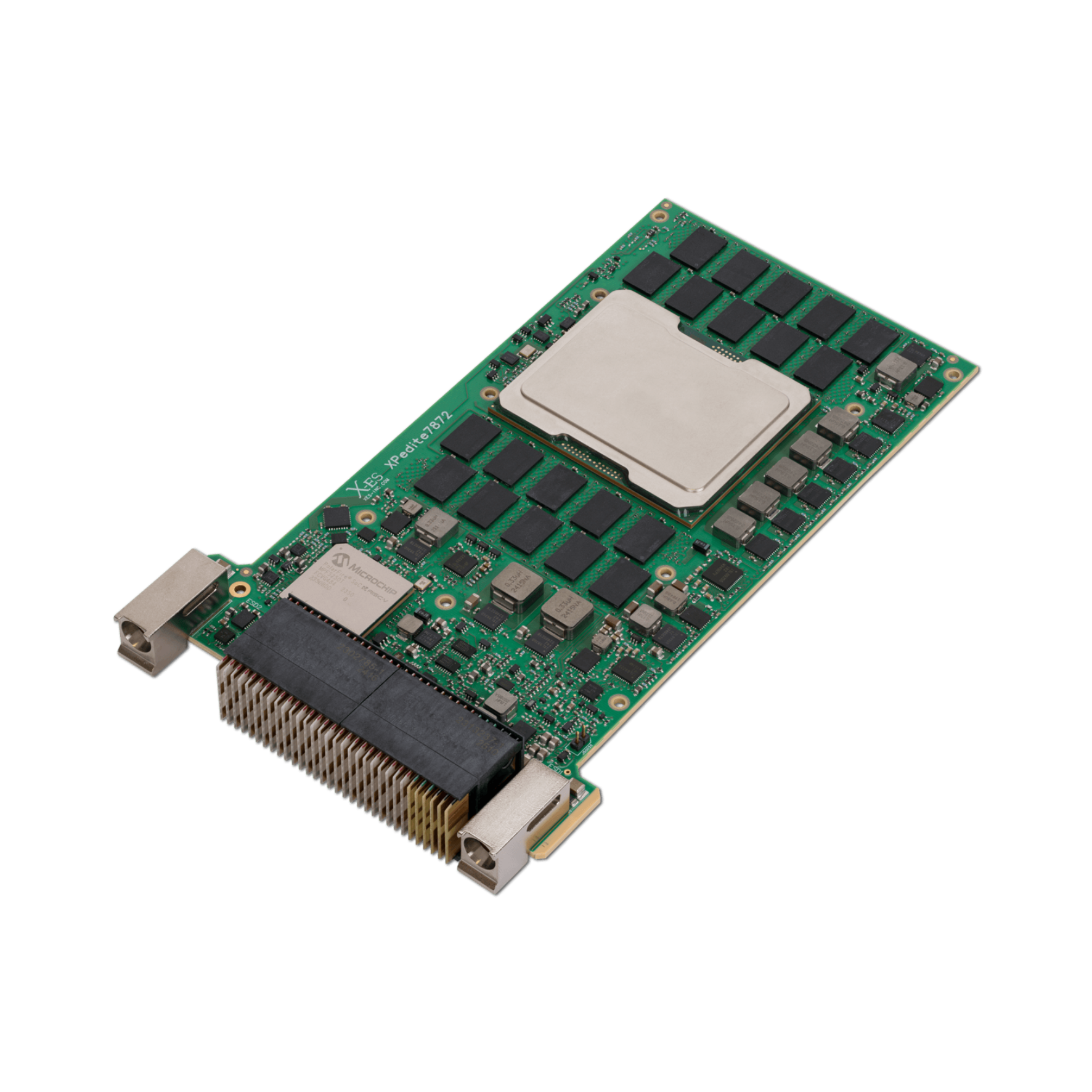

Intel® Xeon® D-2800 Processor-Based 3U VPX-REDI Module with 64 GB of DDR4, 100 Gigabit Ethernet, and SecureCOTS™

The XPedite7872 is a secure single board computer based on the Intel® Xeon® D-2800 series (formerly Eddy Lake) of processors and aligned to the Sensor Open System Architecture (SOSA) Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0).

It accommodates up to 64 GB of DDR4 ECC SDRAM in four channels and up to 256 GB of onboard NAND flash, in addition to four x4 PCI Express Gen3-capable interfaces (also configurable as two x8 interfaces or one x16 interface).

For applications requiring fast data transfer, the XPedite7872 provides one 100GBASE-KR4 Ethernet port, one 25G/10GBASE-KR Ethernet port, and one 1000BASE-KX Ethernet port.

The XPedite7872 integrates SecureCOTS™ technology with a Microchip PolarFire™ System-on-Chip (SoC) FPGA for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.

Technical

Supports Intel® Xeon® D-2800 series (formerly Eddy Lake) processors
Up to 20 Xeon®-class cores in a single, power-efficient SoC package
SKUs available with native extended temperature support
Designed with SecureCOTS™ technology to support enhanced security and trusted computing
Microchip PolarFire™ SoC FPGA with 256 MB SPI flash
3U VPX (VITA 46) module
Compatible with multiple VITA 65 OpenVPX™ slot profiles
Ruggedized Enhanced Design Implementation (REDI) per VITA 48
64 GB of DDR4 ECC SDRAM in four channels
256 GB of onboard NAND flash
One 100GBASE-KR4 Ethernet port
One 25G/10GBASE-KR Ethernet port
One 1000BASE-KX Ethernet port
Four x4 Gen3-capable PCI Express interfaces (can also be configured as two x8 interfaces or one x16 interface)
Two RS-232 and LVCMOS/LVTTL 3.3 V-configurable serial maintenance ports
Contact factory for PCI Express Gen4 and alternative Ethernet configuration availability
RDMA over Converged Ethernet (RoCE) v2 internet layer protocol support
Supports SOSA Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0)
SOSA-aligned to AMPS profile MODA3-16.6.13-1-0-F2C-(E18-E15)(2P3F-2P3F)(E2)(G1-G2)[N]
Wind River VxWorks BSP
X-ES Enterprise Linux (XEL) BSP
Linux Yocto BSP
Contact factory for availability of Microsoft Windows drivers and other operating systems

Specifications

Processor

Intel® Xeon® D-2800 series (formerly Eddy Lake) processor
Up to 20 Xeon®-class cores in a single, power-efficient SoC package
SKUs available with native extended temperature support

Memory

64 GB of DDR4 ECC SDRAM in four channels
256 GB of onboard NAND flash
64 MB NOR boot flash
64 kB EEPROM

Security and Management

Microchip PolarFire™ SoC FPGA with 256 MB SPI flash
Designed with SecureCOTS™ technology to support enhanced security and trusted computing
System voltage monitor, power-on/reset control, non-volatile write-protection control
Trusted Platform Module (TPM)

VPX (VITA 46) P1 I/O

One 100GBASE-KR4 Ethernet port to P1.A
One 25G/10GBASE-KR Ethernet port and one 1000BASE-KX Ethernet port to P1.B
Ethernet ports allow up to 100 Gbps aggregate processor throughput
One FPGA LVDS pair
Two RS-232 and LVCMOS/LVTTL 3.3 V-configurable serial maintenance ports
One single-ended FPGA GPIO
One x4 PCI Express Gen3-capable interface to P1.C
One x4 PCI Express Gen3-capable interface to P1.D

VPX (VITA 46) P2 I/O

One x4 PCI Express Gen3-capable interface to P2.A
One x4 PCI Express Gen3-capable interface to P2.B

Software Support

RDMA over Converged Ethernet (RoCE) v2 internet layer protocol support
UEFI firmware
Wind River VxWorks BSP
X-ES Enterprise Linux (XEL) BSP
Linux Yocto BSP
Contact factory for availability of Microsoft Windows drivers and other operating systems

Physical Characteristics

3U VPX-REDI conduction-cooled form factor
Supports SOSA Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0)
SOSA-aligned to AMPS profile MODA3-16.6.13-1-0-F2C-(E18-E15)(2P3F-2P3F)(E2)(G1-G2)[N]
Dimensions: 100 mm x 160 mm
0.8 in. pitch without solder-side cover
1.0 in. pitch with Two-Level Maintenance (2LM) support

Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements

Supported ruggedization levels (see the X-ES Ruggedization Chart): 5
Conformal coating available as an ordering option
Thermal performance will vary based on CPU frequency and application
Contact X-ES for air-cooled development options

Power Requirements

SOSA Power: +12 V and +3.3 V_AUX (+5 V and +3.3 V not required)
